BALL VALVE 1/4X X1/4

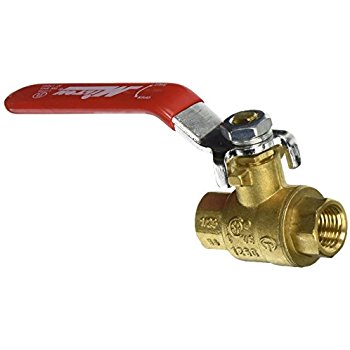

Milton® (S-1094-4) 1/4" NPT Female Full Port Brass Ball Valve

Milton®’s #1094-4 full port brass ball valves with 1/4" FNPT x 1/4" FNPT are high capacity ball valves designed for use with compressed air, water, or oil. These are ideal to isolate segments of the system without disrupting service to the rest of the system. The all-brass body has a plated steel ball valve shut-off. 2" total body length. Teflon seals. Plated ¼ turn handle.

Maximum working pressure:

- Air/Water/Oil: 400 PSI

- Steam: 150 PSI

- At 210 degrees F: 280 PSI

• HIGH CAPACITY: Ball valves for use with compressed air, water, or oil. Brass body, steel-plated ball. Plated 1/4 turn handle. Teflon seals.
• IDEAL: For isolating segments of the system without disrupting service to the rest. Great for natural gas and home water piping systems.
• NATIONAL PIPE THREAD: 1/4" Female NPT (FNPT x FNPT). 2-inch body length.
• MAX WORKING PRESSURE: (Air/Water/Oil = 400 PSI; Steam = 150 PSI; 210 degrees F = 280 PSI).
• TEMPERATURE RANGE: -20 degrees Fahrenheit to 350 degrees Fahrenheit.

• Short Description	Milton® (S-1094-4) 1/4" NPT Female Full Port Brass Ball Valve
  Grouped Product Package Type	Single Retail Pack
  Number of Items in This Pack	1
  UPC Code	30937109446
  Made in USA	No
  Type	No
  Manufacturer	Milton Industries Inc.
  Display on Bloguns CMS Page	No
  SCFM	No
  Key feature	Isolate segments of supply system without disrupting supply to rest of system
  Maximum PSI	Max Pressure at 210 F - 280 PSI
  NPT thread size	1/4" Female NPT x 1/4" Female NPT
  Chuck Style	No
  Valve Type	Ball valve shut-off
  Material Type	Brass
  Height	0.875
  Width	2.125
  Length	4.5
